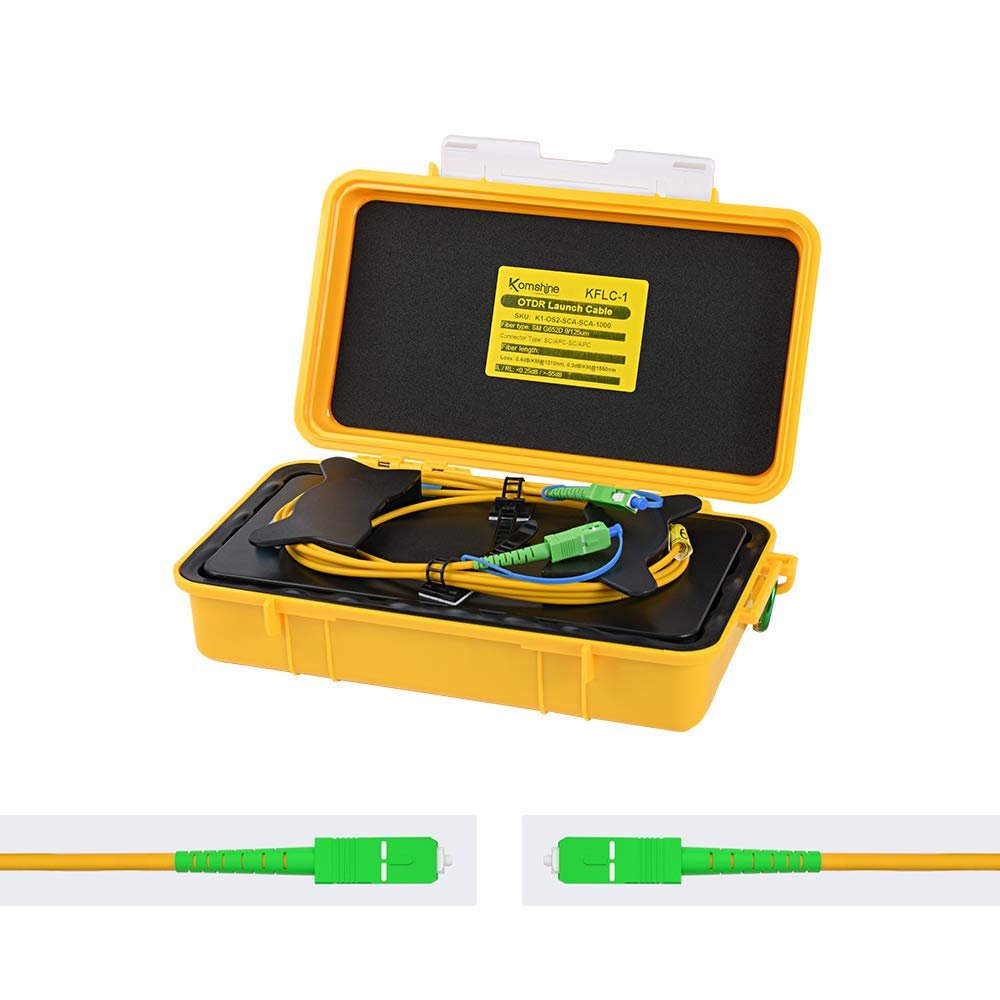

1000meter Optic Fiber OTDR Elminator,singlemode 1310/1550nm Fiber Optic Jump Cable Box,OTDR Launch Cable (SC-APC/SC-APC)

Description

• Suit for Singlemode Cable 1310/1550nm
• Connector Type: SC APC/ SC APC 1000M
• Rubber liner for extra protection doubles as o-ring seal
• Automatic Pressure Equalization Valve - balances interior pressure, keeps water out
• We can provide OEM Service

1000meter Optic fiber OTDR Elminator,singlemode 1310/1550nm fiber optic jump cable box,OTDR launch cable

Other connectors PLEASE LEAVE MESSAGE ABOUT WHAT TYPE OF CONNECTOR YOU NEED

The KomShine OTDR Launch Cable is designed to aid in the testing of fiber optic cable when using an OTDR to help minimize the effects of the OTDR's launch pulse on measurement uncertainty. Using a KomShine launch cable at the beginning of the fiber under test and a OLCB receive cable at the end of the fiber under test allows the ability to perform loss measurements on entire length of the fiber.

Features/Benefits:

Use as a Pulse Suppressor,OTDR Launch/Receive Cable,Delay Line,Training,Product Demonstrations,Calibration
Leads wrap in the same direction for quick easy access and storage
Carabiner Clip included allows unit to be attached to equipment straps, belts and racks
Light weight, easy to carry,small/low profile design portable for field use
Singlemode,Multimode 62.5/125,Multimode 50/125 OM2 and Multimode 50/125 OM3
Custom length configurations also available

Specifications

Fiber Length (m)500 up to 2000 (max)
Fiber TypesSinglemode 9/125, Multimode 62.5/125, Multimode 50/125 OM2, Multimode 50/125 OM3
Lead Length1.5 Meters, 3mm buffer
Insertion Loss<0.3 dB/km typical, <0.5 dB/km max
Back Reflection (RL)UPC: less than -50 dB, APC: less than -60 dB
Mating Reliabilityless than 0.2 dB
Connector GeometriesAll connectors meet or exceed Telcordia GR-326 Core Specification.
Apex Offset:0-50um
Radius of Curvature:7-25 nm
Fiber Height:-50 to 50 mm
Fiber Roughness:0-25 nm
Ferrule Roughness:0-50 nm
Storage Temp:-40Fto +185F
Operating Temp:-40to +185F
Humidity:0 to 95%, non-condensing
Weight:5 oz.
Warranty*:1 year
