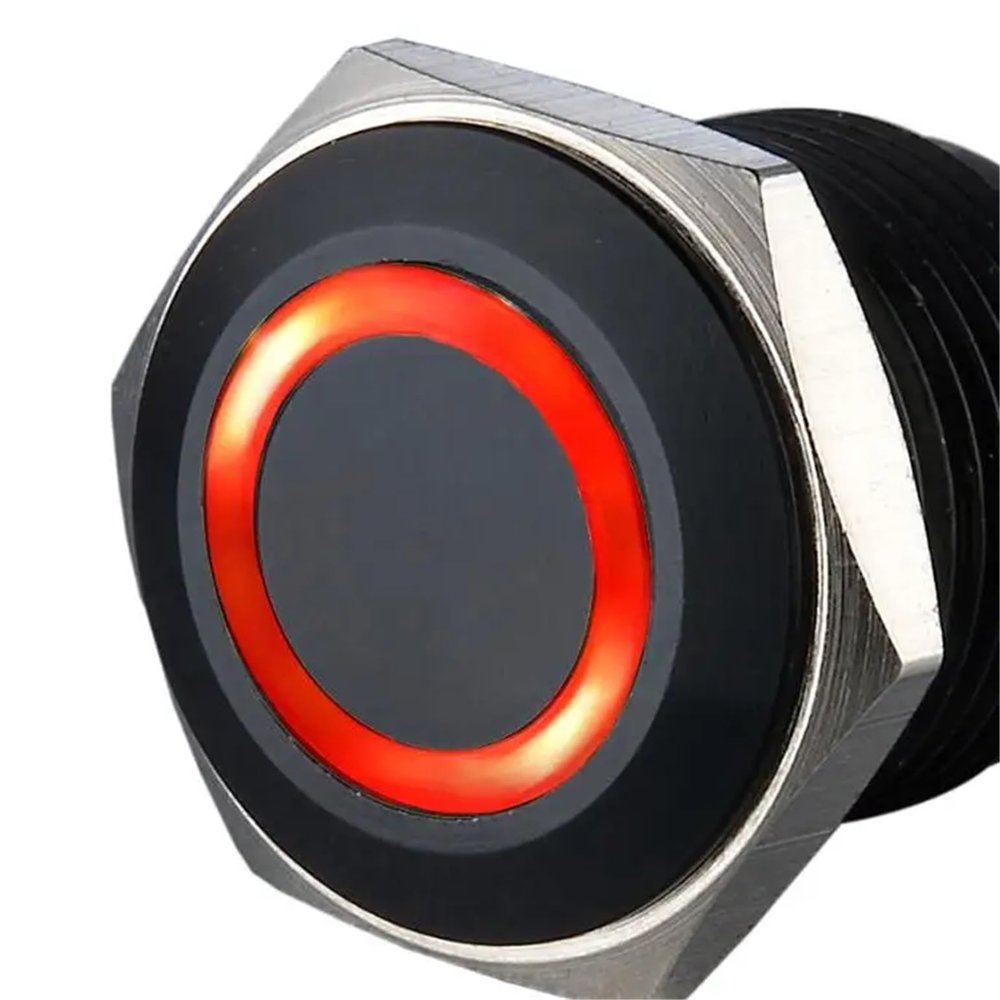

10 Pieces 19mm Black Aluminum Reset 3V 6V 12V 24V 230VRing Illuminated Anti Vandal Push Button Switch(Red,Latching 1NO1NC_LED Voltage 3V)

Description

• Switches
• 10 Pieces 19mm Black Aluminum Reset 3V 6V 12V 24V 230VRing Illuminated Anti Vandal Push Button Switch

Switches
Max. Switch Rating: 5A/ 250VAC
Contact Resistance: 50m
Insulation Resistance : 1000m
Dielectric Strengh: 2000VAC
Operation Temp.: -20C ~ +55C
Mechanical Life: 1,000,000cycles
Electrical Life: >50,000cycles
Tq: 5 ~ 14Nm
Operation Pressure approx. : 3 ~ 8N
Protection: IP65
19mm Black Aluminum Reset Ring Illuminated Anti Vandal Push Button Switch
Momentary: Means that when you push Switch and then move your finger, the actuator will back to the position.
Latching : Means that when you push switch once it will change state and stay in this pushed-down position and will not come back to position unless you push it again.
==========
Current : 5A
Material : Aluminium Alloy
Switch Type : Push Button Switch
Model Number : QN19
Features : waterproof
Item Type : SWITCHES
Is Smart Device : No
Terminal : Pin terminal
Size : 19 mm
Head : Flat head
LED Voltage : 6V 12V 24V 110V 230V
