SENMUBERY

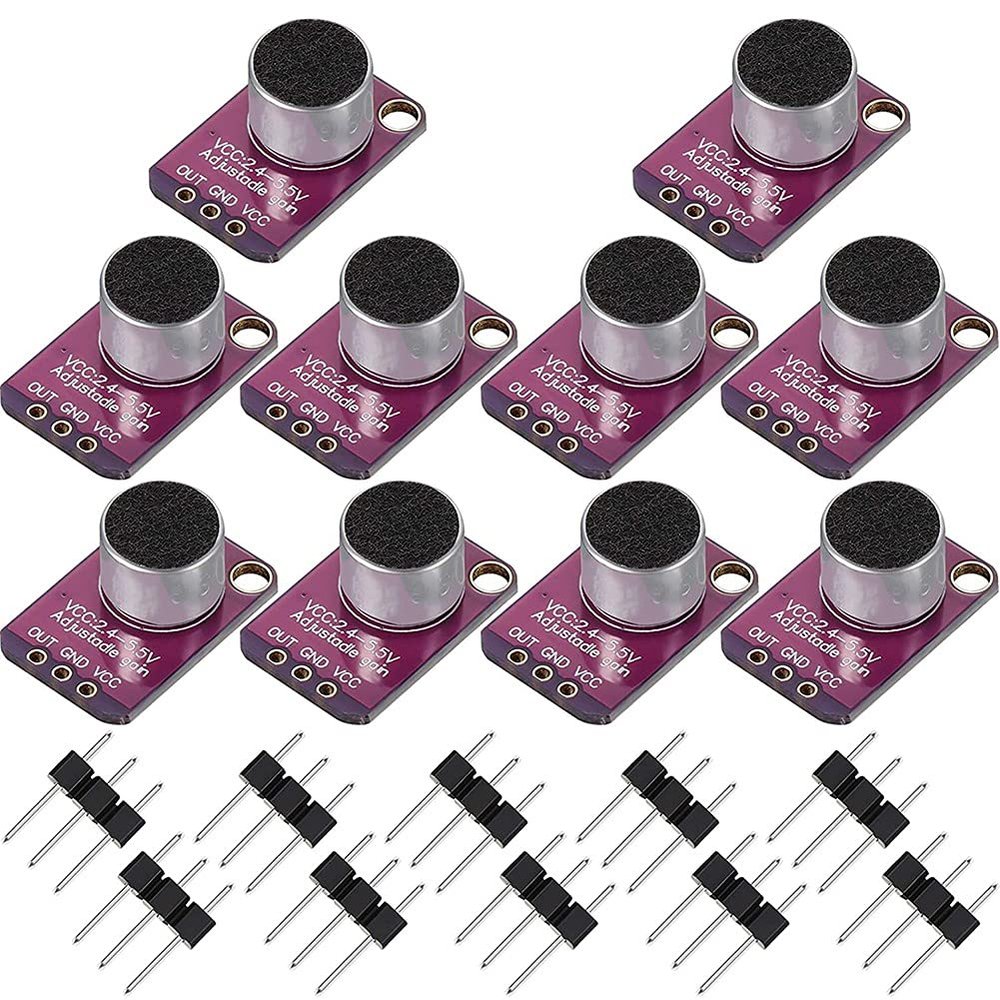

10 PCS Electret Microphone Amplifier Adjustable MAX4466 Module Microphone Preamplifier Breakout Board for
£45.38
£75.63
Save 40% (£30.25)
-
Order within 20 minutes to get between May 20 - May 26 -
Tracked Shipping on All Orders
-
14-Day Returns
- Secure Payments
-
24/7 Customer Support
Description
- Easy to use: connect GND to ground, VCC to 2.4-5VDC; For the good performance, use the 'quietest' supply available (this would be the 3.3V supply)
- 20-20KHz electret microphone soldered on: comes with a 20-20KHz electret microphone soldered on the board for audio-reactive projects; It is recommended to use the driver library, which can take audio input and 'translate' it into frequencies
- Parameters: power supply voltage: +2.4V to +5.5V (can be compatible with , and other development board motherboards); Power supply rejection ratio: 112dB; Common mode rejection ratio: 126dB; AVOL: 125dB (RL = 100 thousands of ohm meter) rail-to-rail output; Quiescent power supply current: less than 24 microamp; Gain bandwidth: 600kHz
- Application: the MAX4466 microphone breakout is suitable for voice converters, audio recording and sampling, and audio response projects using ; On the back, there is a small trimmer pot to adjust the gain; You can set the gain from 25x to 125x
- Power supply noise rejection function: the amplifier has good power supply noise rejection
