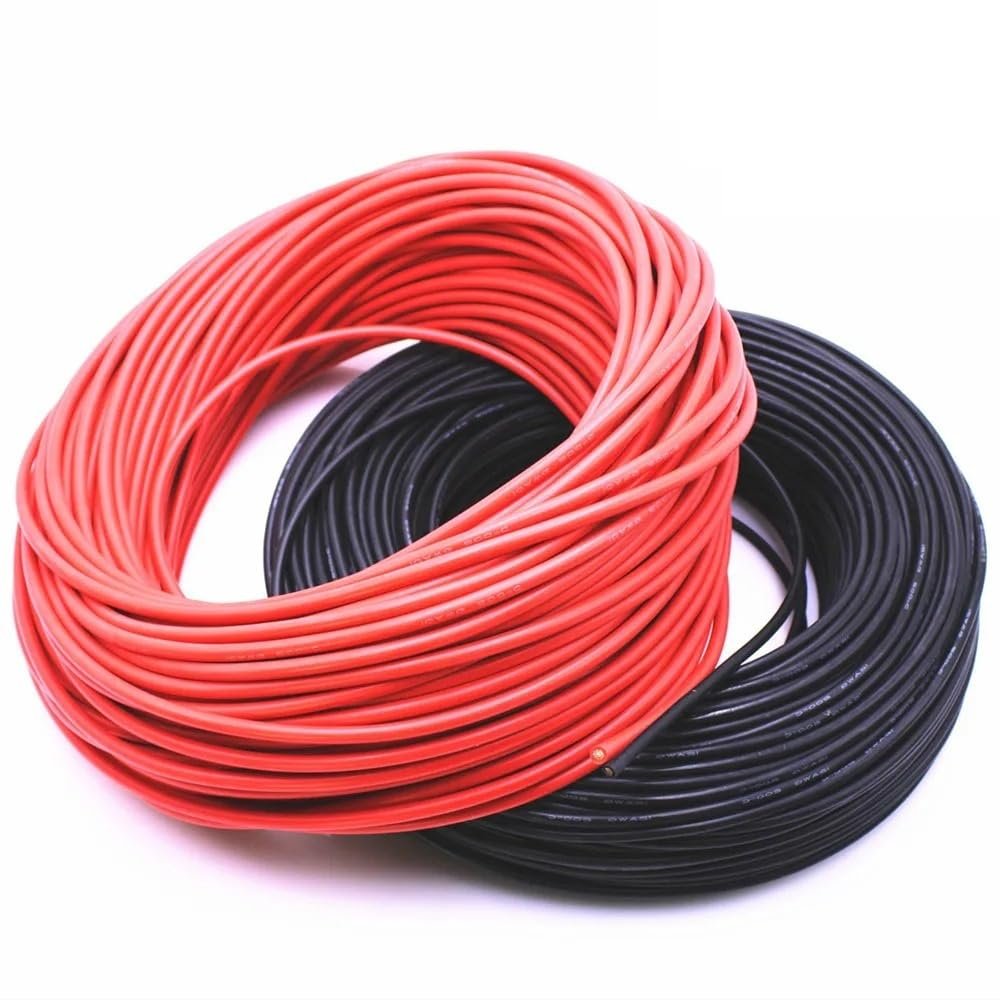

10 Meters Silicone Cable 8 9 10 11 12 13 14 15 16 17 18 20 22AWG high Temperature Resistant Soft Silicone Wire(22 AWG 0.3mm)

Description

• Application : heating
• Type : Insulated
• Conductor Type : Stranded
• Conductor Material : Tinned pure copper wire
• Insulation Material : Silica gel

Extra soft high temperature silicone wire and cable
8 wire gauge
Temperature: -65 degrees to +200 degrees
Each copper wire diameter: 0.08mm
Core: 1650 strands (8.3 square millimeters)
Outer diameter: 6.3mm

9 wire gauge
Temperature: -65 degrees to +200 degrees
Each copper wire diameter: 0.08mm
Core: 1300 strands (6.0 square millimeters)
Outer diameter: 6.0mm

10 wire gauge
Temperature: -65 degrees to +200 degrees
Each copper wire diameter: 0.08mm
Core: 1050 strands (5.3 square millimeters)
Outer diameter: 5.4mm

11 wire gauge
Temperature: -65 degrees to +200 degrees
Each copper wire diameter: 0.08mm
Core: 750 strands (4.0 square millimeters)
Outer diameter: 5mm

12 wire gauge
Temperature: -65 degrees to +200 degrees
Each copper wire diameter: 0.08mm
Core: 680 strands (3.42 square millimeters)
Outer diameter: 4.5mm

13 wire gauge
Temperature: -65 degrees to +200 degrees
Each copper wire diameter: 0.08mm
Core: strands (2.5 square millimeters)
Outer diameter: 3.8mm

14 wire gauge
Temperature: -65 degrees to +200 degrees
Each copper wire diameter: 0.08mm
Core: 400 shares(2.07 square millimeters)
Outer diameter: 3.5mm

15 wire gauge
Temperature: -65 degrees to +200 degrees-
Each copper wire diameter: 0.08mm
Core: 300 shares(1.5 square millimeters)
Outer diameter: 3.2mm

16 AWG
Temperature: -65 degrees to +200 degrees-
Each copper wire diameter: 0.08mm
Core: 252 shares(1.27 square millimeters)
Outer diameter: 3.0mm

17AWG
Temperature: -65 degrees to +200 degrees-
Each copper wire diameter: 0.08mm
Core: 210 shares(1.0 square millimeters)
Outer diameter: 2.9mm

18 AWG
Temperature: -65 degrees to +200 degrees-
Each copper wire diameter: 0.08mm
Core: 150 shares(0.75 square millimeters)
Outer diameter: 2.3mm

20 A
