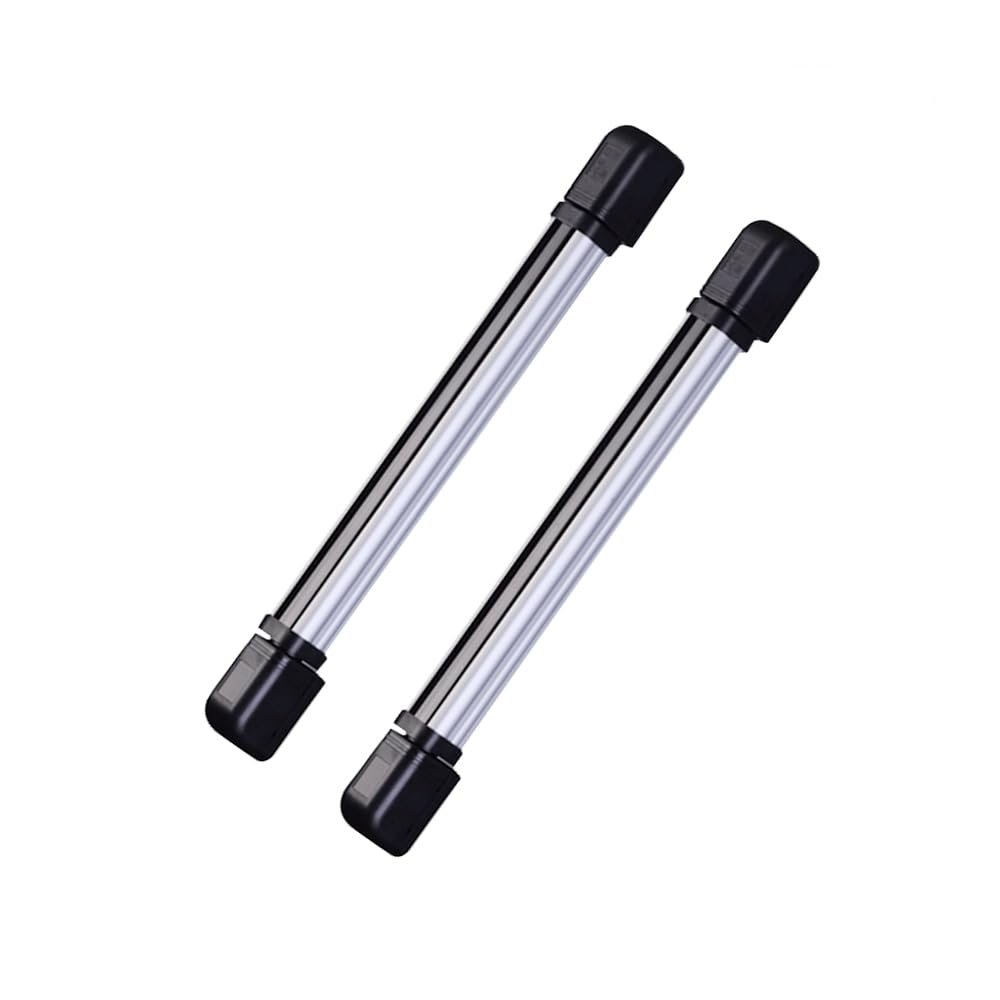

10 Meters Range 48 cm Height 2 Beams Infrared Barrier Detector Range

Description

• Infrared barrier detector

Model:ABI10-482

Features:

* Multiple Interactive infrared beams shooting. Adjacently 2 beams interruption detection.
* NC/NO relay output.
* Easy alignment with visual LED indicator and audible buzzer
* High quality aluminum alloys cover.
* Resistant to rain, fog, snow and frost.
* Digital frequency conversion.
* CPU microprocessor, good performance against outdoor interference.
* AGC pure digital circuit design, DSP digital chip programming, really reduce false alarm
* Horizontal optical angle can be easy to adjust (180)

Model: ABI10-482

Detecting: 10m
Height: 48cm
Number of Beams: 2 beams
Response Speed: 40m/s
Detection method: Simultaneous linteruption of adjacent1 infrared beams
Alarm Output: Switch signal output(NO/NC)
Tamper Output: NO/NC.1B contact output,DC26V/0.5A Max
Power and Voltage: DC10-18V
Operation Current: 50-90mA max
Material: Aluminum,PC engineer plastic
Working Temperature: -25c~+55c

Package1x Infrared barrier detector
