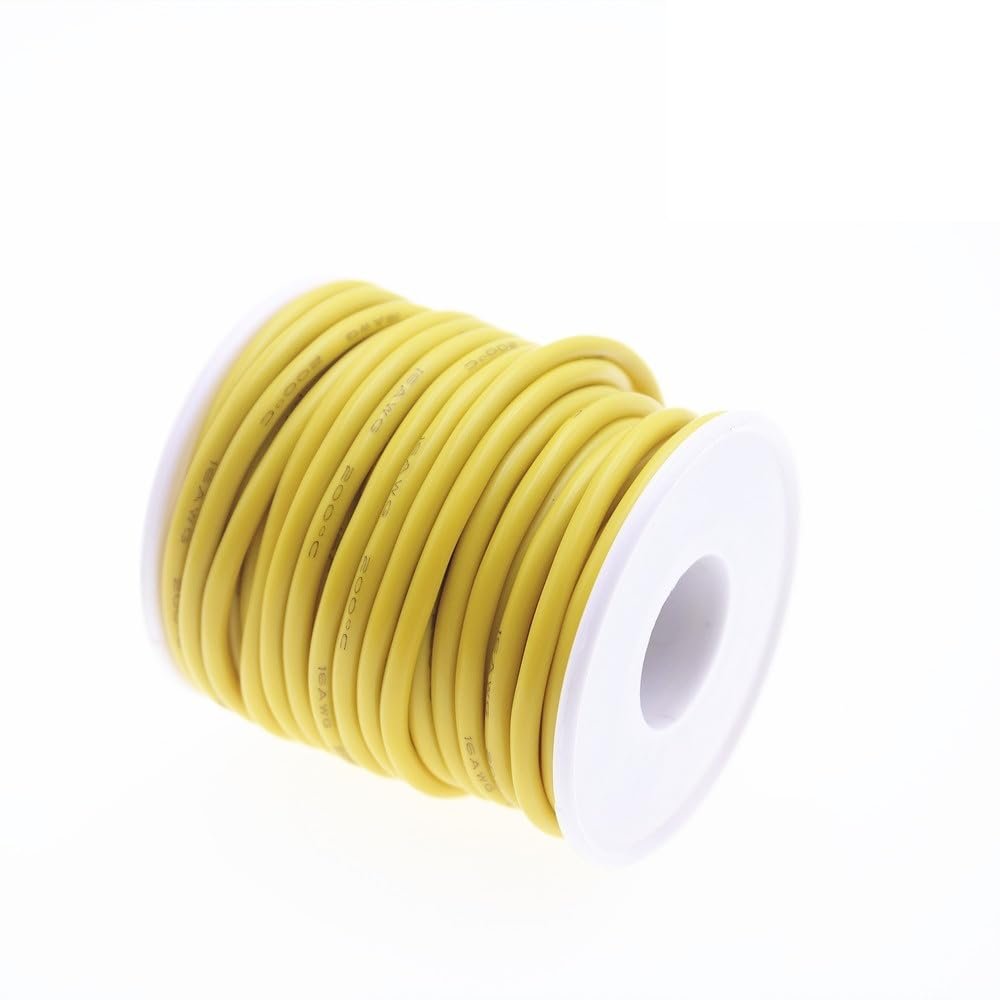

10 Meters Heat-Resistant Cable Wire Soft Silicone Wire 12 15 16 17 18 20AWG(Yellow,17 AWG 10 Meters)

Description

• Application : heating
• Type : Insulated
• Conductor Type : Stranded
• Conductor Material : Tinned copper
• Insulation Material : Environmental protection silicone

Detailed parameters of all the following specifications
Extra soft high temperature silicone wire and cable

12 wire gauge
Temperature: -65 degrees to +200 degrees
Each copper wire diameter: 0.08mm
Core: 680 strands (3.42 square millimeters)
Outer diameter: 4.5mm

13 wire gauge
Temperature: -65 degrees to +200 degrees
Each copper wire diameter: 0.08mm
Core: strands (2.5 square millimeters)
Outer diameter: 3.8mm

14 wire gauge
Temperature: -65 degrees to +200 degrees
Each copper wire diameter: 0.08mm
Core: 400 shares(2.07 square millimeters)
Outer diameter: 3.5mm

15 wire gauge
Temperature: -65 degrees to +200 degrees-
Each copper wire diameter: 0.08mm
Core: 300 shares(1.5 square millimeters)
Outer diameter: 3.2mm

16 AWG
Temperature: -65 degrees to +200 degrees-
Each copper wire diameter: 0.08mm
Core: 252 shares(1.27 square millimeters)
Outer diameter: 3.0mm

17AWG
Temperature: -65 degrees to +200 degrees-
Each copper wire diameter: 0.08mm
Core: 210 shares(1.0 square millimeters)
Outer diameter: 2.9mm

18 AWG
Temperature: -65 degrees to +200 degrees-
Each copper wire diameter: 0.08mm
Core: 150 shares(0.75 square millimeters)
Outer diameter: 2.3mm

20 AWG
Temperature: -65 degrees to +200 degrees-
Each copper wire diameter: 0.08mm
Core: 100 shares(0.5 square millimeters)
Outer diameter: 1.80mm

use:
This product is widely used in the connection of electronic products, batteries, aircraft model batteries, model wiring harnesses, electrical equipment and internally connected instrument equipment, lamps and motor wires
Wish you a very good time here
