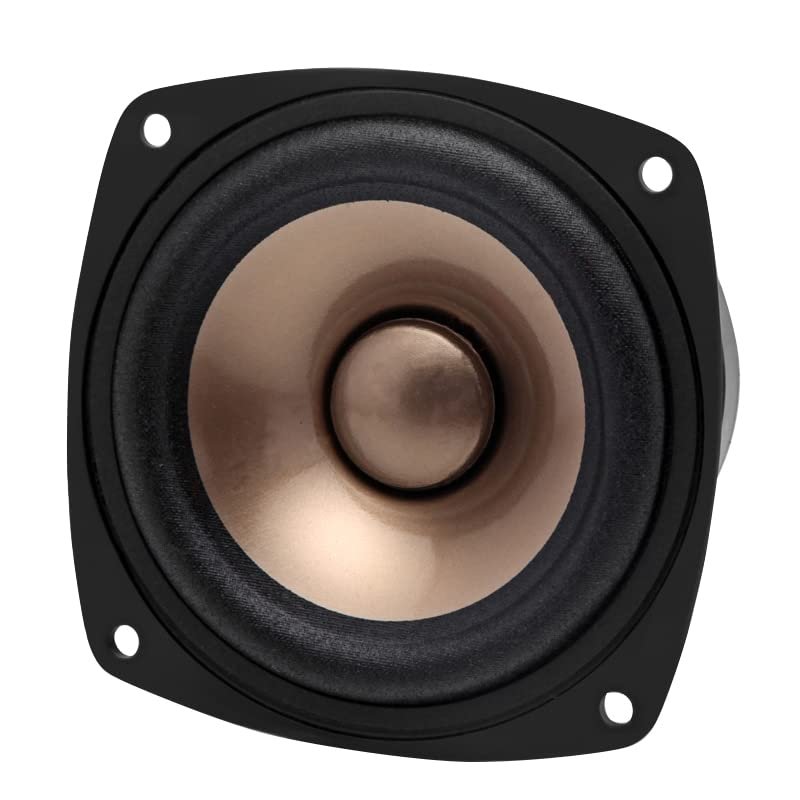

1 Pieces Full Frequency Speaker Driver Mixed Coating Paper Cone Dual Magnets Deep Bass 4/8ohm 60W For AKISUI (Color : Golden 4ohm(Round))

Description

• Frequency response: 50-23KHz
• Sensitivity: 90db/mw
• VAS=7.5L
• Model: for AS120FL42Ex/AS120FL52Ex

1, Speaker specification of 4inch square chassis version, as following
(The golden cone version have the same datasheet/chassis dimension with white paper cone version)
Model: for AS120FL42Ex/AS120FL52Ex
Impedance: 4ohm
Rated power: 60W
Max power handle: 100W
Speaker height: 70mm
Screw hole diameter: 115mm
Wood box hole cut: 95mm
Frequency response: 50-23KHz
Sensitivity: 90db/mw
VAS=7.5L

Model: AS120FL42Ex
Impedance: 4ohm
Rated power: 60W
Max power handle: 100W
Fs=50Hz
Speaker height: 75mm
Screw hole diameter: 110mm
Wood box hole cut: 98mm
Frequency response: 50-23KHz
Sensitivity: 90db/mw
VAS=7.5L
