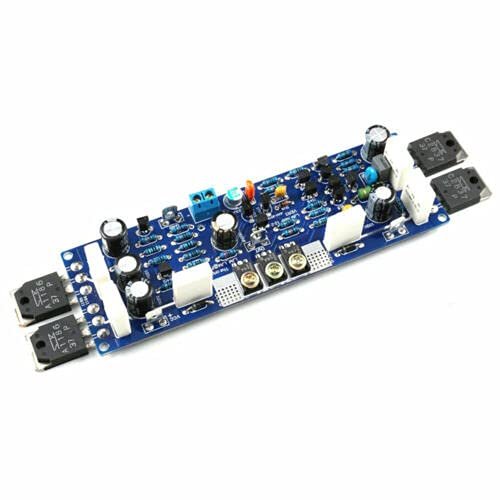

1 Pair LJML12-2 Dual Power Amplifier Board Low Distortion Class ABAMP

Description

• Power Supply: 120W / 8R + -50V voltage
• 200W 4R + -50V Voltage
• Frequency response range = 15HZ-50K HZ(-3DB)
• Static current = 80MA
• Voltage usage range = DC positive and negative dual voltage + -12V ~ + -55V

1 Pair LJML12-2 Dual Power Amplifier Board Low Distortion Class ABAMP
Parameters
Power Supply: 120W / 8R + -50V voltage
200W 4R + -50V Voltage
THD 200, 8 Ohm Load
Input sensitivity = 1.6 V output 120 W8R
Frequency response range = 15HZ-50K HZ(-3DB)
20HZ * 20K HZ = -0.02 DB
Static current = 80MA
Voltage usage range = DC positive and negative dual voltage + -12V ~ + -55V
Voltage Magnification = 31x
Features:
PCB75UM thickness copper film using 2MM thickness material each channel has a static current of 40MA and works with class AB.
The small signal tube uses the original TOSHIBA low noise tube, and the original ON low noise tube is used as current source and voltage amplifier.
The output tube adopts the original Sanken Ultra High Frequency FT 70M and multi-emitter LAPT audio.
2SA1186 2SC2837, 2 pairs of output tubes per channel
Humanized installation method, one channel requires only a large pipe to the radiator.
And the large tube can be installed anywhere on a variety of radiators + -50V. 8 ohm load can output 120W of power
Package
1 Pair LJML12-2 Dual Power Amplifier Board Low Distortion AMP
