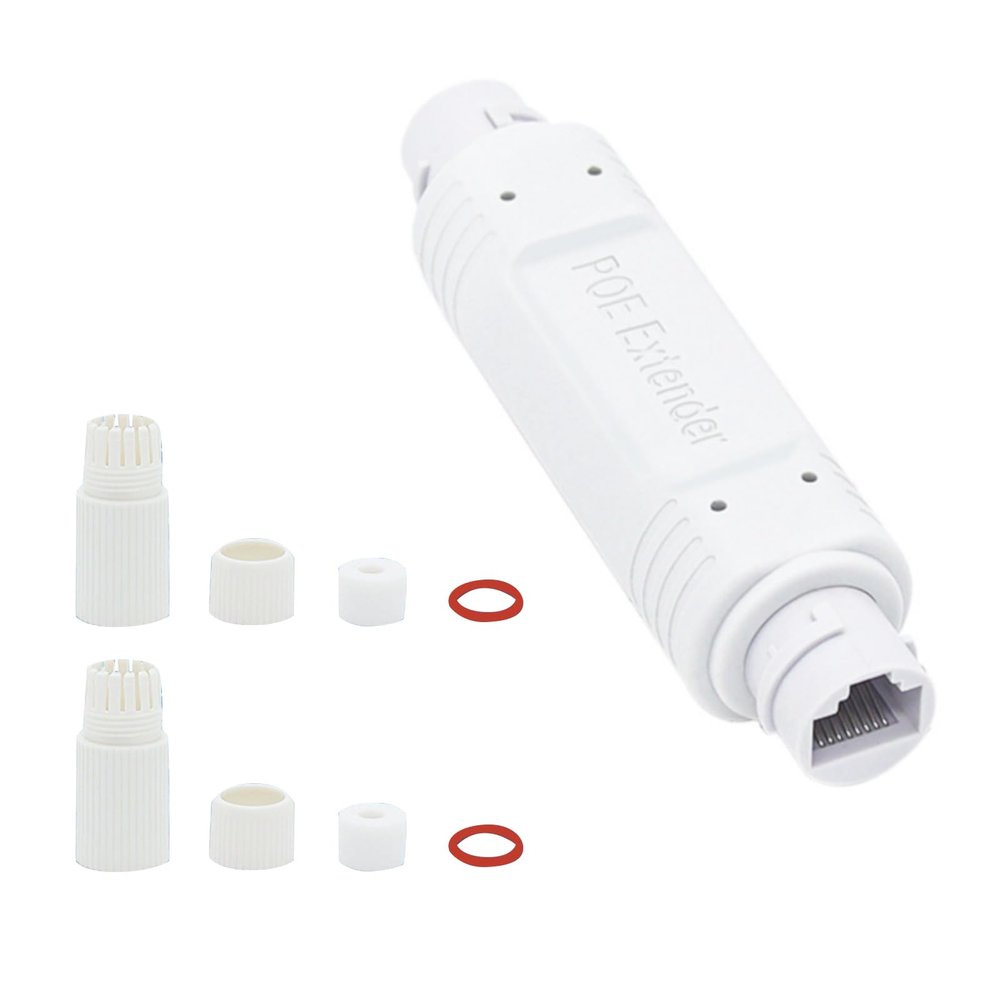

1 in 1 Out PoE Extender POE Passthrough Switch for Security Systems IP Camera

Description

• POE Injector Adapter, One POE Input Port And One POE Output Port.
• The POE Extender Can Extend The Range Of The Ethernet Network By An Additional About 100m (328 Ft). Multiple POE Extenders Can Be Cascaded Up To 500 Meters.
• Supports 100mbps Data Rates, Comply With IEEE802.3at And IEEE802.3af Standard. Provides 802.3af Power Levels When Powered By Any 802.3at Source.
• No Power Supply Required, Network Port Powered, Simple And Fast Wiring, Stable And Reliable Power Supply Plug And Play, No Configuration Required Powered Via The POE Input, Plug And Play. Automatically Detects And Protects POE Equipments From Being Damaged By Incorrect Installation.
• It' S Able To Forward Ethernet And POE Power For 1 Terminal Equipment Via Cat5, Cat5e, Cat6, Cat6e, UTP Cable.

Features:
POE Injector Adapter, One POE Input Port And One POE Output Port.
The POE Extender Can Extend The Range Of The Ethernet Network By An Additional About 100m (328 Ft). Multiple POE Extenders Can Be Cascaded Up To 500 Meters.
Supports 100mbps Data Rates, Comply With IEEE802.3at And IEEE802.3af Standard. Provides 802.3af Power Levels When Powered By Any 802.3at Source.
No Power Supply Required, Network Port Powered, Simple And Fast Wiring, Stable And Reliable Power Supply Plug And Play, No Configuration Required Powered Via The POE Input, Plug And Play. Automatically Detects And Protects POE Equipments From Being Damaged By Incorrect Installation.
It' S Able To Forward Ethernet And POE Power For 1 Terminal Equipment Via Cat5, Cat5e, Cat6, Cat6e, UTP Cable.
Ip66 Waterproof. Waterproof And Sunscreen Design, Can Be Placed Freely In Various Outdoor Environments

Specifications:
Name: 100mbps POE Repeater
Condition: Brand New
Transmission Rate: 100mbps
Material: PVC
Color: Shown As Picture
Input/Output Voltage: 44-57V
Single Port Power: 30W (Max)
Interface Type: RJ45
Working Temperature: -10C~60C
Waterproof Grade: IP66
Support: IEEE802.3af/IEEE802.3at Standard
POE Port: IEEE802.3af/IEEE802.3at Standard POE Power Supply
Network Interface: 1*10/100base-Tx POE Port.1 10/100base-Tx Connected To Pd Receiving Port
Forwarding Mode: Store-And-Forward
Mac Address Table: 1k
Exchange Capacity: 0.4gbps
Packet Forwardingrate: 0.298mbps
Packet Cache: 768kbits
Jumbo Frame: 2048bytes
Power Supply Pins: 1/2 (+), 3/6(-) Or 4/5(+),7/8() Input And Output Ports Support 4-Core /8-Core Power Supply
Indicator Light: Power Indicator: Yellow (Pwr); POE Work Indicator: Green
Lightning Protection Class: 2kv 8/20us;
Overall Dimensions: 10*2.5*2.2 Cm
Product Weight: 0.08kg

Package List:
1* 100mbps POE Repeater
2 Set* Waterproof Accessories
