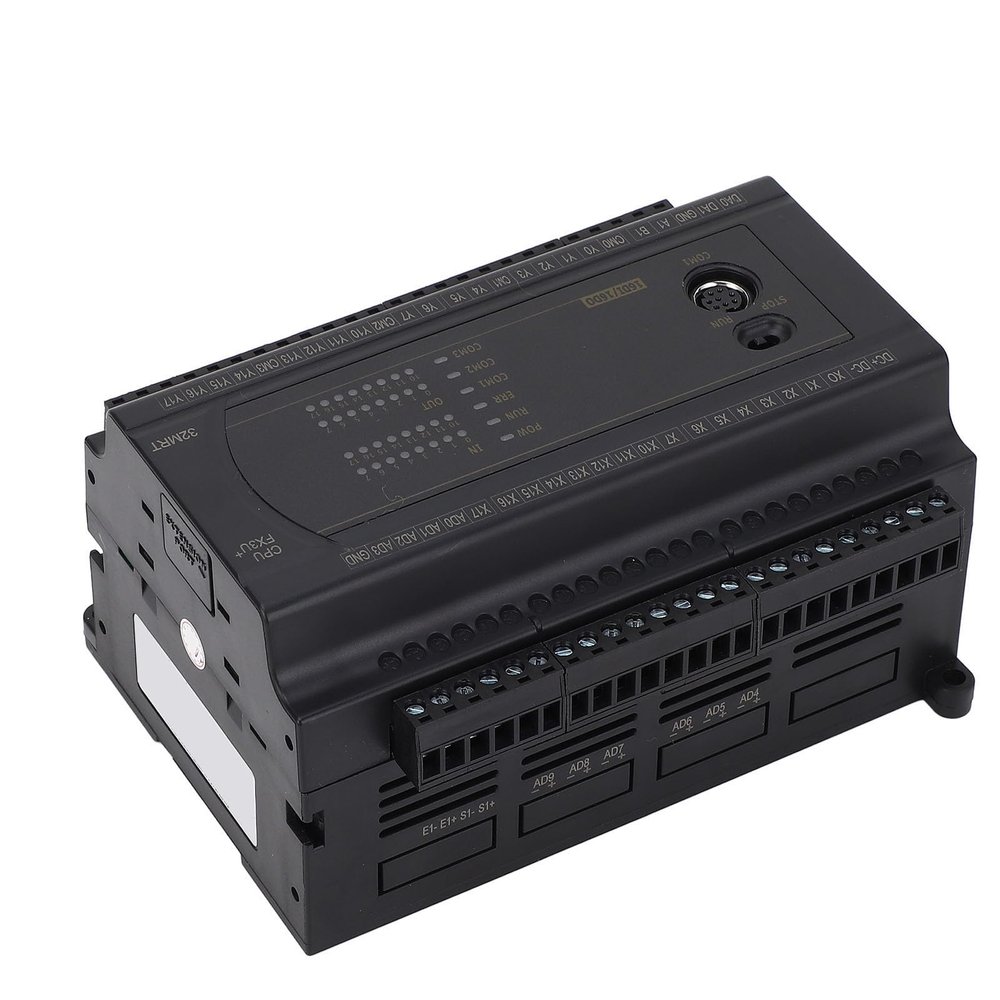

1 Channel Remote Control Switch Module PLC IO Module RS232 RS485 PLC Control Board with High Speed Pulse Counting Programming Software Compatible

Description

• Seamless Communicating: Boasting a 1 channel RS232 and RS485 communicating port, this industrial control board can communicate with programming software simultaneously. It assures a download speed compatibility of 9.6 to 11.52Kbps. It is compatible with for GX Developer or for GX Works2 for programming, downloading, debugging, and monitoring. It does not support monitoring writing.
• Efficient Power Supply: Operating on DC 24V supply, the board has a static current of 40MA under no relay output open circumstances. The start up current requirement is 1A, ensuring efficient performance and durability.
• High Speed Input and Output: The board comes with six high speed routes, and various high speed output options, offering customization and flexibility to fit your needs.
• Superior Analog Input Output: The board defaults to 4AD 010V, and has 2 channels of analog output range from 010V. This enables seamless flowing of information and optimal board performance.
• Robust Encryption: The PLC board comes with super encryption, which is activated when the keyword is set at 12345678. This feature prevents program uploads and blocks all commercial password breaking software, making sure your data is secure and private.

Spec:
Item Type: PLC Control Board
Material: ABS
Size: Approx. 145 x 110 x 78mm / 5.71 x 4.33 x 3.07in
Download Speed: 9.6-115.2Kb
Memory Capacity: 32000 steps
Input Points: 16
Output Points: 16
Output Type: Relay
Output Current: 3A
Load: 24V 220V
High Speed Count: 2/100K or 4/100K
Pulse Output: None
Analog Input: Default 4AD 0-10V, adjustable to 4-20mA
Analog Output: 2DA 0-10V
RS485: 1 channel
RS232: 1 channel
Power Supply: DC24V

How to Use:
Environment and Installation:
1. To prevent overheating inside the machine, please install it in a wall mounted manner. Make sure to leave enough space and below for heat dissipation.
2. Leave a space of at least 50mm between the programmable controller host and other devices or structures. Stay away from high voltage lines, high voltage equipment, and power equipment as much as possible.
3. Avoid dust, oil pollution, corrosive environments; pay attention to electrostatic safety (avoid direct touch of hands with circuit board lines).

Package List:
1 x PLC Control Board
