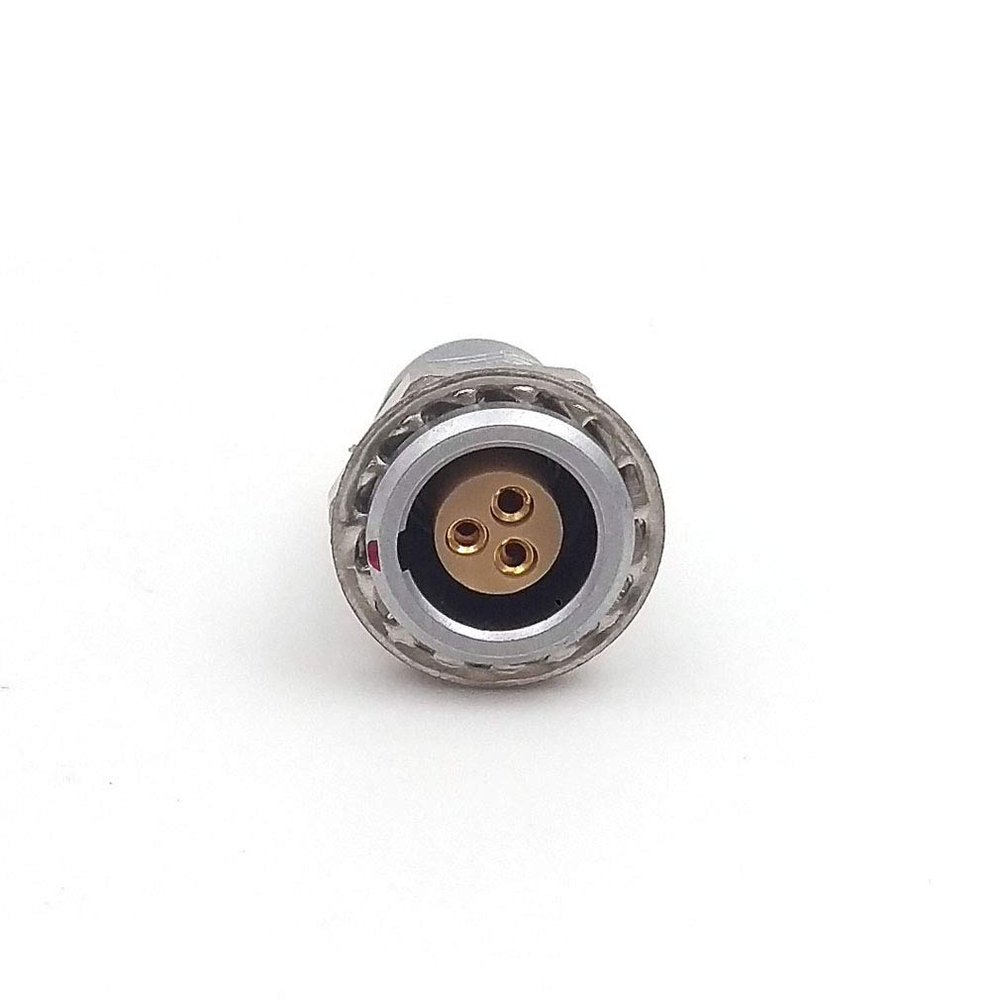

0B Serials 3 pin Aviation Connector Socket, Egg.0B.303 Push-Pull Self-Lock Metal Plug Socket (Rear Nut Socket (Egg.0B.30-), 3 Pin)

Description

• Part number: EGG.0B.303 3 pin Aviation push-pull self-lock connector socket, Termination: Solder. Gender: Rear nut female socket
• Contact diameter: 0.9x3, Rated current: 10A, Rated voltage (AC.V.): 400V, PLEASE REFER TO 2ND PICTURE FOR SIZE AND PARAMETER DETAILS
• Wire specification: <0.785m/18AWG, Cable size: default 5mm max(other cable size request please contact before order), Item net weight: 0.42 oz
• Anti-rotation feature,1 key (alpha=0), Security of the push-pull self-latching system.
• Stable electrical performance, high strength and resistance to pressure, high temperature resistance, anti-explosion, anti-corrosive.

0B serials push-pull self-lock aviation connector, 2 3 4 5 6 7 9 PIN Connector
2pin,3pin:
Rated Current (A): 10A
Contact diameter number: 0.9 x 2 / 0.9 x 3
Rated voltage (AC.V.): 500V(2pin), 400V(3pin)
Withstanding Voltage (AC.V) 1 minute: 1000V (2pin), 875V(3pin)
Contact resistance: 6m
Wire specification: <1.5m/16AWG

4Pin, 5pin:
Rated Current (A): 7A
Contact diameter number: 0.7 x 4 / 0.7 x 5
Rated voltage (AC.V.): 300V
Withstanding Voltage (AC.V) 1 minute: 875V(4pin), 750V(5pin)
Contact resistance: 7.5m
Wire specification: <0.785m/18AWG

6pin, 7pin, 9pinn:
Rated Current (A):5A (6, 7pin), 2A(9pin)
Contact diameter number: 0.5 x 6 / 0.5 x 7 / 0.5 x 9
Rated voltage (AC.V.): 750V(6, 7pin), 600V(9pin)
Withstanding Voltage (AC.V) 1 minute: 300V(6, 7pin), 200V(9pin)
Contact resistance: 5m
Wire specification: <0.785m/18AWG

0B series Push-pull self-lock Connectors have a very simple locking mechanism:
As the plug is pushed into the receptacle, locking fingers on the plug snap into the receptacle, creating a reliable connection between plug and receptacle.
Pulling on the cable or the rear of plug causes the locking fingers to grab harder and a separation of plug and receptacle is almost impossible.
Pulling on the outer plug housing causes the locking fingers to retract and the plug and receptacle separate easily.
