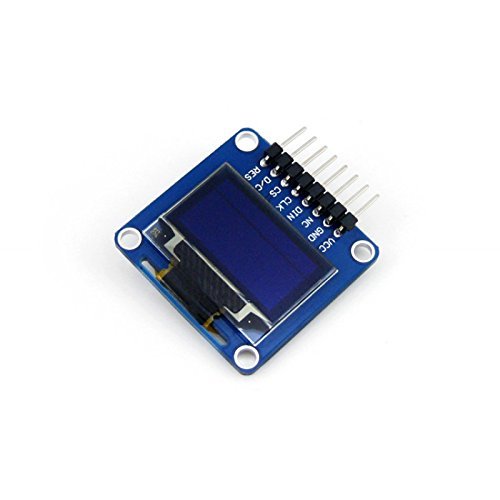

0.96inch OLED(A) Compatible with Raspberry Pi/Jetson Nano/Arduino/STM32 128*64 Resolution 3-wire/4-wire SPI I2C Interfaces Straight/Vertical Pinheader

Description

• 0.96inch OLED, SPI/I2C interfaces, curved/horizontal pinheader
• Hardware platforms such as RPi/Jetson Nano/Arduino/STM32
• Operating Voltage: 3.3V/5V;Communication Interface: 3-wire SPI, 4-wire SPI, I2C
• Resolution: 128*64 (Pixel);Display Size: 0.96inch;Display Color: 1/4 yellow section, 3/4 blue section
• Operating Temp. (): -20C ~ 70C;Storage Temp. (): -30C ~ 80C;Visible Angle: >160

Introduction
0.96inch OLED, SPI/I2C interfaces, curved/horizontal pinheader

Specification
Operating Voltage: 3.3V/5V
Communication Interface: 3-wire SPI, 4-wire SPI, I2C
Screen Type: OLED

Driver Chip: SSD1306
Resolution: 128*64 (Pixel)
Display Size: 0.96inch
Display Color: 1/4 yellow section, 3/4 blue section
Operating Temp. (): -20C ~ 70C
Storage Temp. (): -30C ~ 80C
Visible Angle: >160

Package Content
0.96inch OLED (A) x 1
