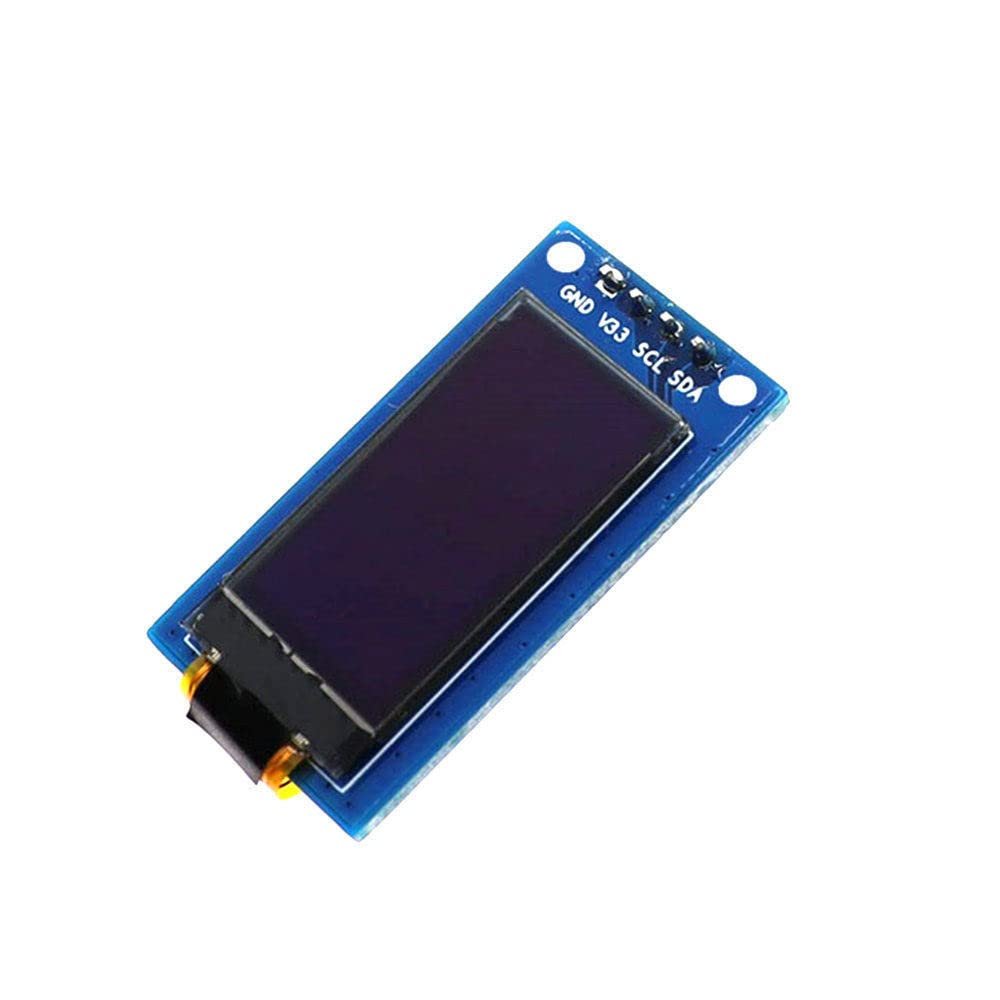

0.96 inch OLED Display 64128 LCD Module SSD1107 LCD 0.96"OLED Vertical Screen Module for arduino

Description

• 0.96 inch OLED display 64128 LCD module SSD1107 LCD 0.96 "OLED Vertical screen module for arduino

|Interface type: IIC interface

Pin definition: GND, V33, SCL, SDA

1:GND(OLED power supply)

2:V33 (OLED 3.3V)

3:SCL(OLED IIC Clock line)

4:SDA(OLED IIC Cable)|Driver chip: SH1107

Support interface: IIC

Resolution: 64128

Display size: 0.96"

Display color: white light

OLED mode: positive

Operating temperature: -40C~70C

Storage temperature: -40C~85C

Operating voltage: 3.3v

Module size: 36.5mm19mm11.3mm

Visible area: 22.74mm11.86mm

Effective area: 21.74mm10.86mm

Point distance: 0.17mm0.17mm

Point size: 0.15mm0.15mm
