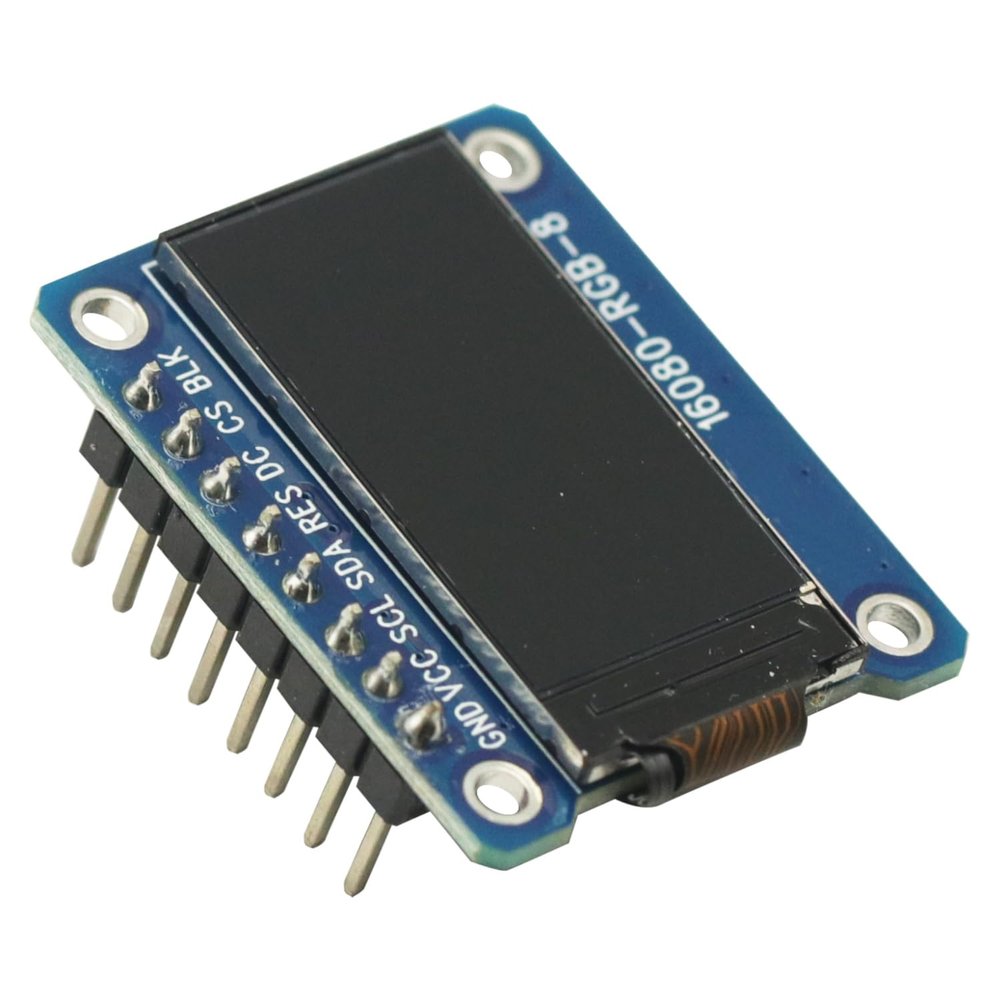

0.96 inch 80X160 IPS LCD Display Module Full Color TFT 65K ST7735 Driver LCD Screen 3.3V SPI Interface

Description

• Display Mode Normally black IPS
• Lcd display module
• Display Format Graphic 80 RGB*160 Dot-matrix
• Operating Temperature -2070C

1.Features
SIZE 0.96inch
Display Mode Normally black IPS
Display Format Graphic 80RGB*160 Dot-matrix
Input Data SPI interface
Drive IC ST7735S
Dimensional outline 24(W)*30 (H)*2.8+/-0.1(T)mm
Resolution 80RGB*160 Dots
LCD Active area 10.8 (W)*21.7 (H)
Dot pitch 0.135(H) x 0.1356(V) mm
Viewing Direction All View
Operating Temperature -2070C

2.Pin Descriptions:
PIN No Symbol Description
1 GND Ground
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
This pin is reset signal input. When the pin is low, initialization of the chip is
executed. Keep this pin pull high during normal operation.
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin

Package:
1 pcs 0.96 inch 80X160 IPS LCD Display Module
