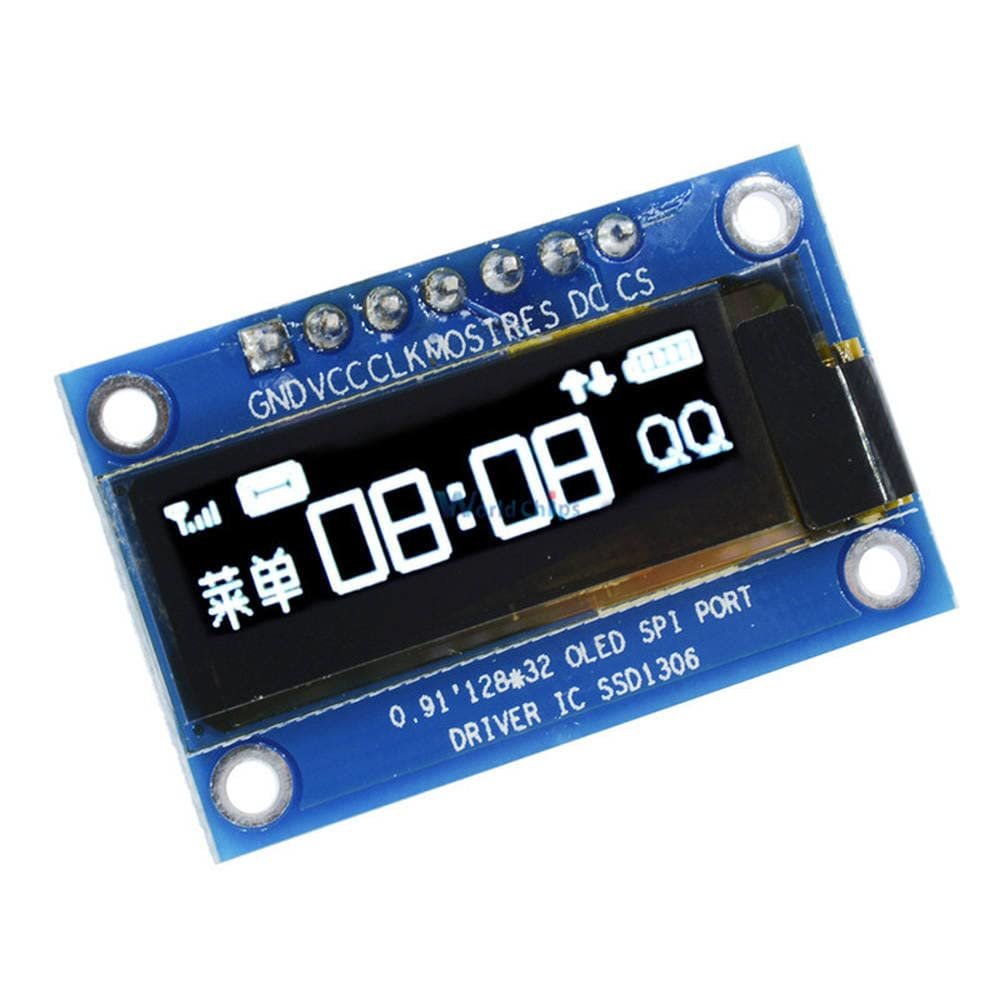

0.91 Inch 128x32 White OLED LCD Display DIY OLED Module SSD1306 Driver IC for Arduino PIC SPI Port DC 3.3V-5V

Description

• 0.91 Inch 128x32 White OLED LCD Display DIY Oled Module SSD1306 Driver IC For Arduino PIC SPI Port DC 3.3V-5V

Features:



Driver IC: SSD1306

Size: 0.91 inch OLED

Resolution: 128 x 32

Font Color: white

Voltage: DC 3.3-5V

PIN Interface: SPI



OLED display, no need backlight, self-illumination, the display performance is better than the traditional LCD display, also lower consumption.



SPI Pin definition:



GND: Power ground

VCC: Power

CLK: Clock line

MOSI: Data cable

RES: Reset line

DC: Data/commands

CS: Chip select (when not use can be grounded directly)



Packaged included:



1* 0.91 OLED LCD Display Module
