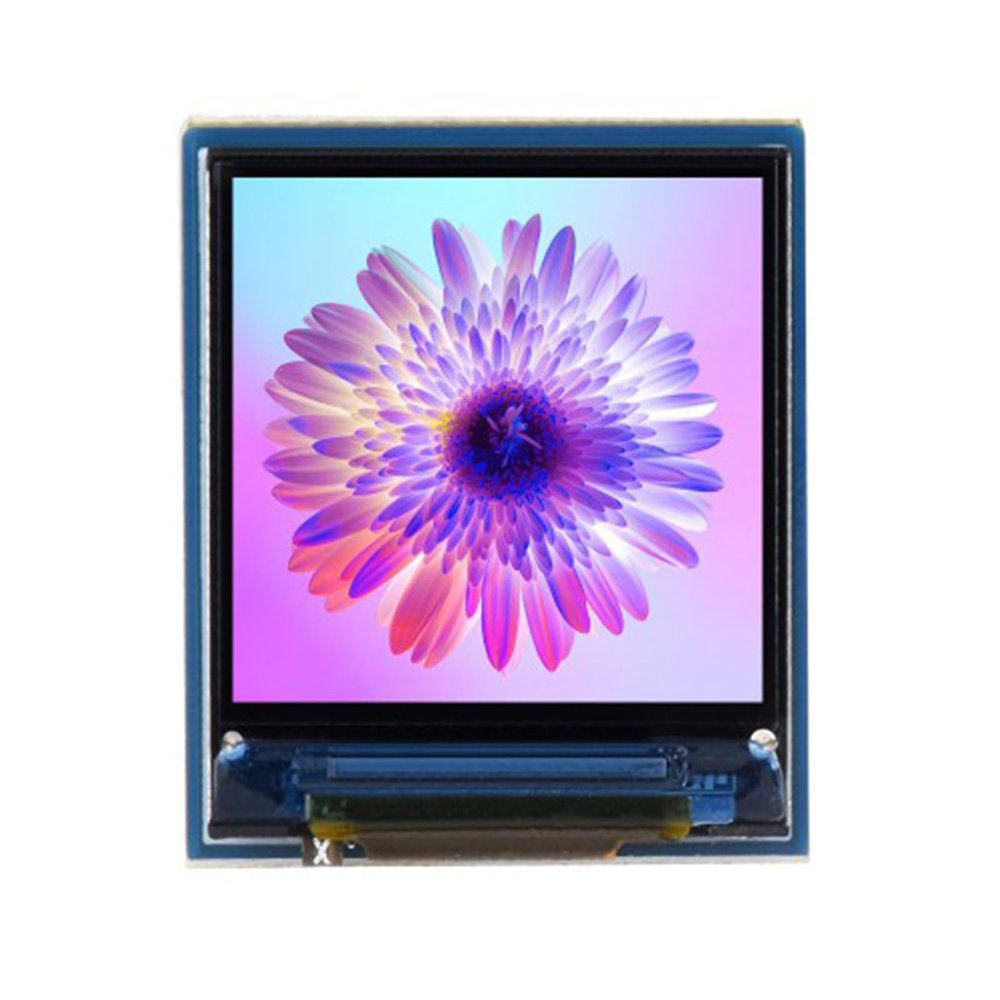

0.85inch LCD Display Module Compatible with Raspberry Pi IPS Screen Panel 128128 Pixels Resolution SPI Interface 65K colors GC9107 Driver Supports Pi/Arduino/STM32/ESP32/RP2040/Jetson series

Description

• This is an offical LCD of Waveshare.Resolution: 128 128 pixels;Display size: 15.2115.21mm
• 128128 resolution, 65K RGB colors, clear and colorful displaying effect
• SPI interface, minimizes required IO pins, supports controller boards like RPi/Arduino/STM32/ESP32/RP2040/Jetson series
• Comes with development resources (examples for RPi/Arduino/STM32/ESP32/RP2040/Jetson series)
• Operating voltage: 3V ;Communication interface: SPI

Overview
Introduction
Provides demo for RPi, STM32, Arduino, ESP32, Pico, and Jetson Nano.

Parameters
Operating voltage: 3V
Communication interface: SPI
Screen type: IPS
Controller: GC9107
Resolution: 128 128 pixels
Display size: 24.768 x 28.896 mm
Pixel pitch: 39.6118.8um
Dimensions: 19.022.5mm

Features At A Glance
This is an offical LCD screen of Waveshare.
128128 resolution, 65K RGB colors, clear and colorful displaying effect
SPI interface, minimizes required IO pins, supports controller boards like RPi/Arduino/STM32/ESP32/RP2040/Jetson series

Comes with development resources (examples for RPi/Arduino/STM32/ESP32/RP2040/Jetson series)

Package Content

0.85inch LCD Module x1
GH1.25 8PIN cable x1
