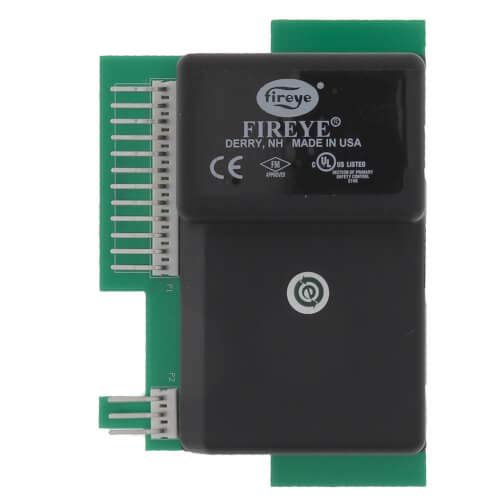

0.8 Sec. FFRT M-Series II Ultra-Violet Amplifier

Description

0.8 seconds. FFRT M-Series II Ultra-Violet AmplifierFireye The M-Series II modular flame protection controls are compact, modular burner management systems. They provide automatic ignition and continuous flame monitoring for commercial size heating and process burners using gas and/or light oil fuels. Flame sensing is accomplished by miniature UV scanners or flame bar/photocell detectors and amplifier and programmer modules attached to a standard chassis and wiring base. Interchangeable programmer and amplifier modules allow complete versatility in selecting control function, timing, and flame scanning media. Features such as relight, two-stage capability, purge time, and pilot cutoff are determined by the programmer module. Flame scanner type (UV, flame bar, or photocell) and flame failure response time (FFRT) are determined by the amplifier module. Some programmer modules have dipswitches to select purge time, pilot proof-for-ignition (PTFI) time, and recycle or non-recycle operation. LED indicator lights on all programmer modules indicate the operating status of the control. In the event of a failure to ignite, or after a safety shutdown, the unit locks out, activating an alarm circuit. Manual reset is required. Remote reset (via remote push button or power interruption) is available on the MC120R chassis. Post-purge is available on the MC120P chassis. Test connectors allow measurement of the flame signal during operation. A "bump check" switch on the MP560, MP561, and MP562 programmer module helps test pilot size, position, and stabilization. M-Series II modular controls incorporate a safety check circuit that operates on every start-up. If flame (real or simulated) is detected prior to a start or during purge, the fuel valves will not energize and the tiller will lock out. Specifications: Product Type: Amplifier Type: Ultraviolet Response Time: 0.8 seconds
