0.5M MCIO 74P 8X 8I S/AS SFF-8654 8i PCI-E Ultraport Slimline 5.0 to 8X SATA 7P Left Angle Female Cord

Description

• Features and Benefits
• 1.Transmission rate 12Gbps.
• 2. Meet SAS4.0 specification.
• Mechanical Performance
• Mating Force and Unmating Force

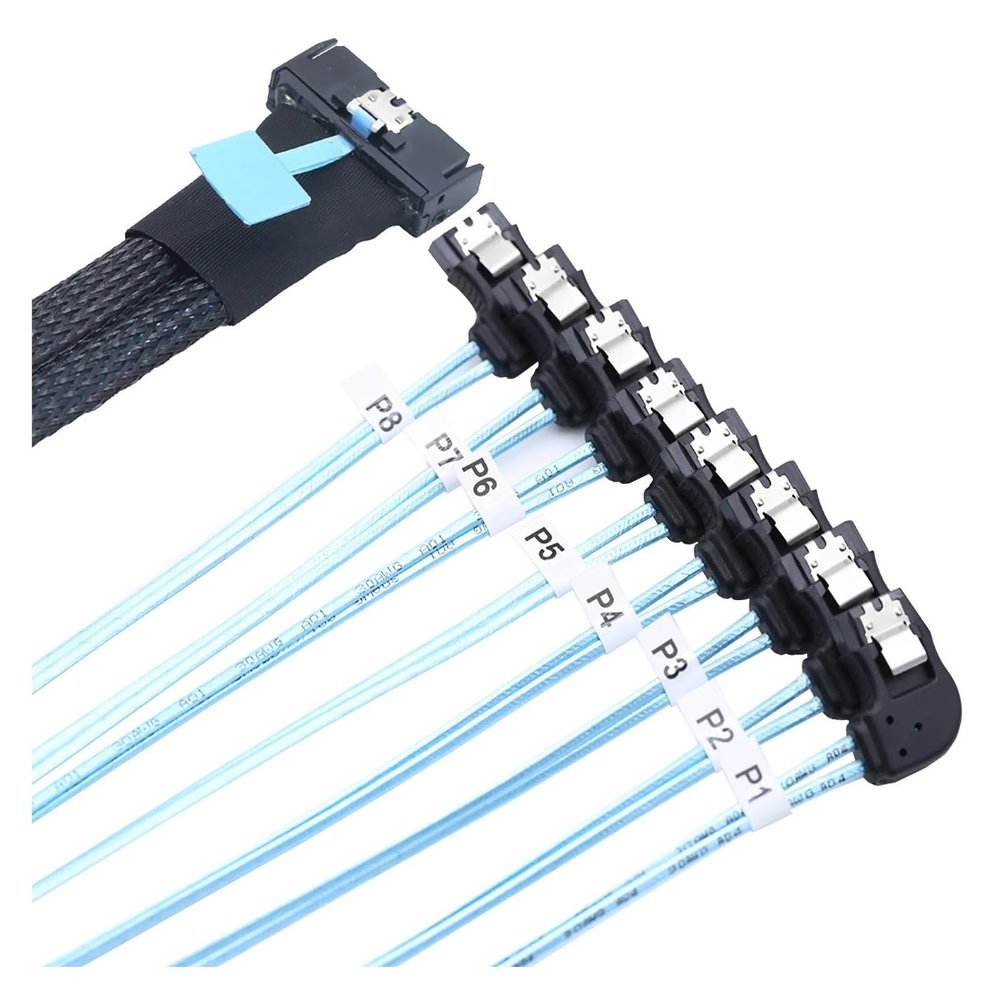

Product Description:MCIO 74P 8X 8I S/AS SFF-86548i PCI-E Ultraport Slimline 5.0 to 8X SATA 7P left angle female cord
cord Length:0.5M
Wire Size: 32AWG, Tinned Copper, OD: 0. 9*2.3,MM
Lock to Mating Part: With Latch
Plating: Au 15u' min over Ni 100u' min
Color: cord , Over Black
Compliance:
Flammability: cord Horizontal flame, PCB 94V-0, PBT 94V-0
Applications
Data/Communications
1. (Redundant Array of Independent Disks)
2.Workstations
3.Rack-mount server
4.Servers
5.Storage rack
Features and Benefits
1.Transmission rate 12Gbps.
2. Meet SAS4.0 specification.
Mechanical Performance
Mating Force and Unmating Force
Condition: EIA 364-13. Insert and extract at a speed of
25mm/minute.
Mating Force: 55 N maximum for M1ni S/AS.
Unmating Force: 49 N maximum for M1ni S/AS.
Mating Force: 45 N maximum for SATA connector.
Unmating Force: 10 N maximum for SATA connector.
Electrical Performance
1. Current Rating
0.5Amperes maximum per pin when mated.
2.Voltage Rating
32VAC per when mated or unmated.
3. Resistance
32mohm max. initial, 15mohm maximum after stress test.
4.Dielectric Withstanding Voltage
500 VAC for 1 minute no breakdown.
5.Insulation Resistance
1000 Mohm minimum.
Signal Integrity
1. Mated Connector Impedance: 85 15%
2. cord Absolute Impedance: 85 10%
3. cord Pair Matching:5
4. Common Impedance: 25 to 40 ohms
5. Insertion loss: -6dB maximum up to 4.5Ghz;
6. Crosstalk: -26 dBup to 6Ghz;
Product Compliance
RoHS2.0:Compliant
ChinaRoHS:Yes
REACH SVHC:Yes
Low-Halogen Status:Not Reviewed
The Product photo
Workshop photo
Package : Yes
Model Number : MCIO-026
TY>pe : / S/AS / InfiniBand Cables
Origin : China
Certification : CE
