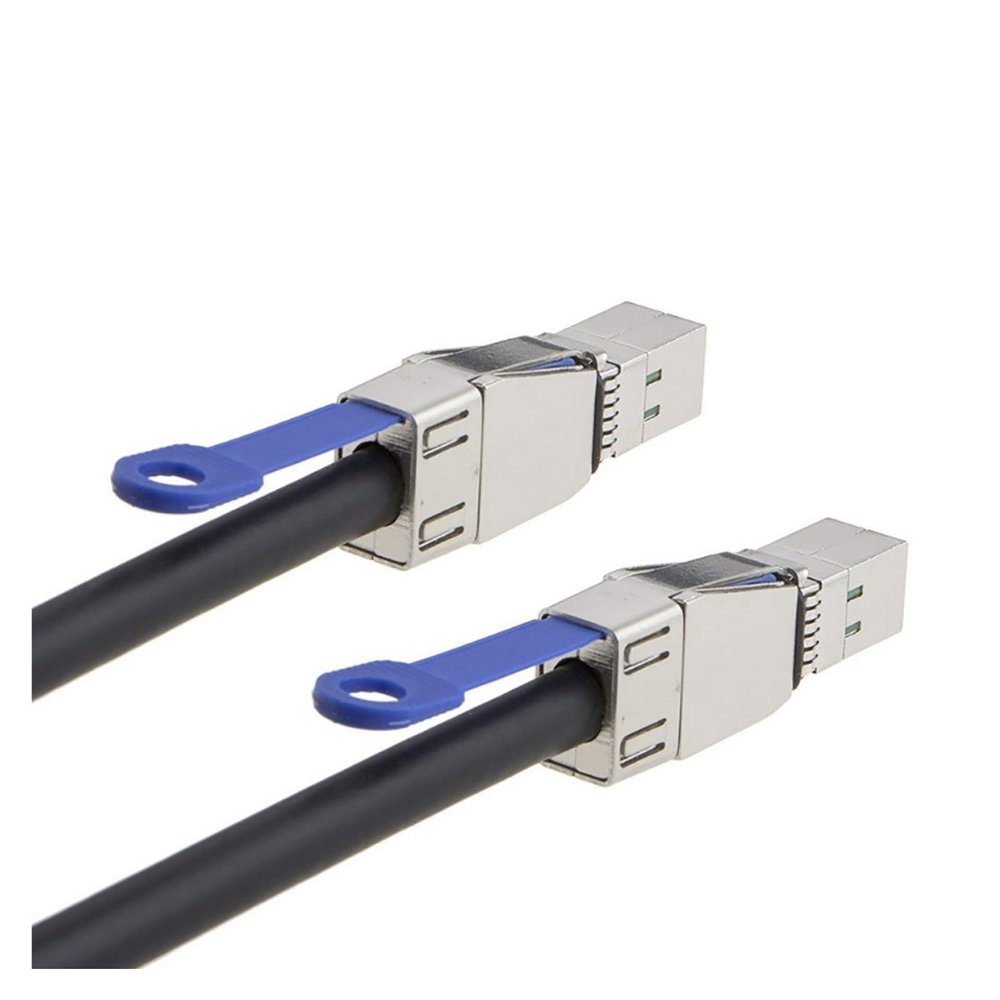

0.5M External M1ni S/AS HD SFF-8644 to M1ni S/AS SFF-8644 High Density HD Cable for Hard Disk Server Card

Description

• 0.5M External M1ni S/AS HD SFF-8644 to M1ni S/AS SFF-8644 High Density HD Cable for Hard Disk Server Card

External M1ni S/AS HD SFF-8644 to M1ni S/AS SFF-8644 High Density HD Cable for Hard Disk Server Card
Product Description: M1ni S/AS 36P Straight to 4X SATA 7P
Series: M1ni S/AS
Cable Length: 0.5M
Wire Size: 30AWG, Tinned Copper, OD: 0. 9*2.3,MM
Lock to Mating Part: With Latch
Plating: Au 30u' min over Ni 100u' min
Color: Cable , Over Black
Compliance:
Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0
Applications
Data/Communications
1. (Redundant Array of Independent Disks)
2.Workstations
3.Rack-mount server
4.Servers
5.Storage rack
Features and Benefits
1.Transmission rate 12Gbps.
2. Meet SAS4.0 specification.
Mechanical Performance
Mating Force and Unmating Force
Condition: EIA 364-13. Insert and extract at a speed of
25mm/minute.
Mating Force: 55 N maximum for M1ni S/AS.
Unmating Force: 49 N maximum for M1ni S/AS.
Mating Force: 45 N maximum for SATA connector.
Unmating Force: 10 N maximum for SATA connector.
Electrical Performance
1. Current Rating
0.5Amperes maximum per pin when mated.
2.Voltage Rating
30VAC per when mated or unmated.
3. Resistance
30mohm max. initial, 15mohm maximum after stress test.
4.Dielectric Withstanding Voltage
500 VAC for 1 minute no breakdown.
5.Insulation Resistance
1000 Mohm minimum.
Signal Integrity
1. Mated Connector Impedance: 100 15%
2. Cable Absolute Impedance: 100 10%
3. Cable Pair Matching:5
4. Common Impedance: 25 to 40 ohms
5. Insertion loss: -6dB maximum up to 4.5Ghz;
6. Crosstalk: -26 dBup to 6Ghz;
Product Compliance
RoHS2.0:Compliant
ChinaRoHS:Yes
REACH SVHC:Yes
Low-Halogen Status:Not Reviewed
The Product photo
Workshop photo
Hign-concerned Chem/*ical : None
Package : Yes
Model Number : 8644-027
TY>pe : / S/AS / InfiniBand Cables
Origin : China
Certification : CE
